Hi,



we’re developing an addon, which creates automatically a 3D PDF on buttonclick and mail the pdf file to a customer.

Now we want to extend this functionallity to generate a VCAX file and a 3D PDF file.

I extended the class to Import ‘IAnimationRecorder’ but then the plugin wont load at visual components startup.



is there anything I’m doing wrong?

Thanks to the dualis Support, I got an answer.

For everyone struggle with these problem:

use IApplication.Simulation.AnimationRecorder.

recorder.Start(AnimationRecordingMethod.WriteVcax, new Uri(exportFilename), “Test”, string.Empty, string.Empty, null);

// you must start your simulation manually and wait for the finish

recorder.Stop();

Hy,

is thus Wirkung also with current VC 4.10.2

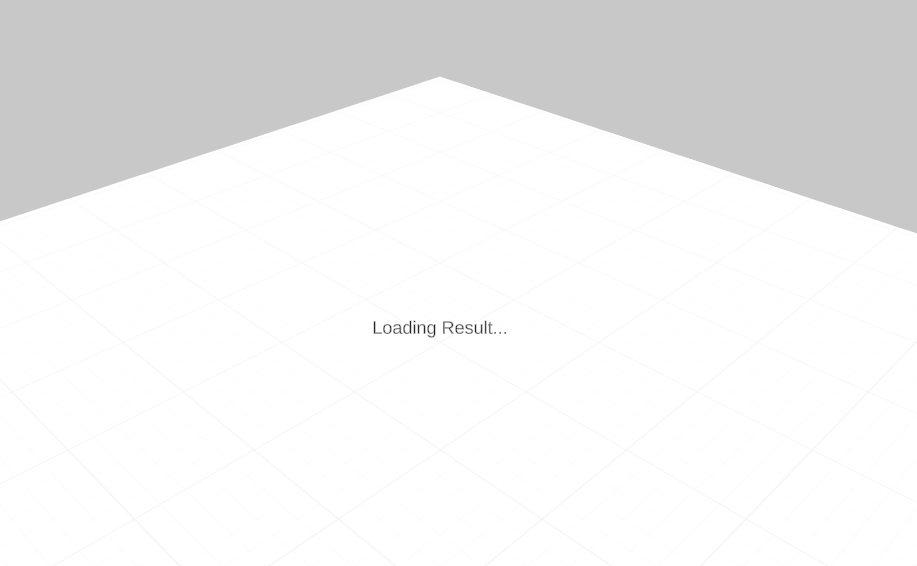

I do implement this and vcax-files are created but if open them in VC Experience they couldn’t be loaded and the createsd vcax seems to be much smaller aus expected, VCE stays in Kissing like in following screenshot:

Is that a bug or what I’m doing wrong?
Thx & Regards
